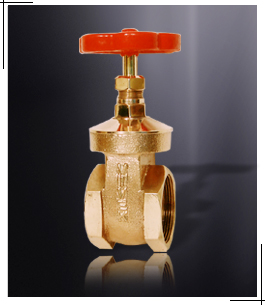

| VIVEK Bronze
Gate Valves Standard Type Screwed (FLANGED ENDS AVAILABLE) |
| Specifications |
Screwed in Bonnet, Standard Type, Inside Screw, Non
Rising Stem, Integral seats, Screwed female
Parallel threads to IS : 554 PVC coated Hand
Wheel |
|
Working Pressure |
(180
psig.) Up to 100oC |
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
| 1 |
Body |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 2 |
Bonnet |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 3 |
Gland
Nut |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 4 |
Gland |
Leaded
Tin Bronze/Brass |
LTB 2 of
IS : 318/IS : 6912 |
| 5 |
Wedge |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 6 |
Check
Nut |
Leaded
Tin Bronze/Brass |
LTB 2 of
IS : 318/IS : 6912 |
| 7 |
Stem |
Brass |
FHTBI of
: 6912 |
| 8 |
Gland
Packing |
Asbestos |
IS: 4687 |
| 9 |
Handwheel |
Cast
Iron |
FG 200
of IS : 210 |
| 10 |
Screw |
Mild
Steel |
IS: 1367 |
| 11 |
Washer |
Mild
Steel |
IS: 1367 | |
|
|
|
Dimensional Data |
|
Sizes |
mm |
8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
|
inches |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
|
Dimensions |
L |
38 |
38 |
42 |
48 |
49 |
61 |
61 |
61 |
75 |
78 |
|
H |
87 |
87 |
92 |
95 |
105 |
134 |
140 |
159 |
200 |
225 |
|
W |
49 |
49 |
49 |
55 |
58 |
70 |
82 |
87 |
116 |
116 | | |
| |
| |
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 300 psig. |
|
Seat Test (Hydrostatic) 200 psig. |
| WATER |
STEAM |
GAS |
OIL |
AIR |
|
|
|
|
|
| | | | |
| |
| |
| |
| |

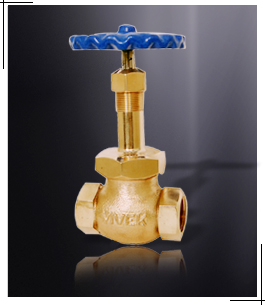

| VIVEK Bronze
Union Bonnet Globe Valves Screwed (FLANGED ENDS AVAILABLE) |
| Specifications |
Screwed on Bonnet,
Rising Stem, Can be repacked under pressure ,
Renewable Stainless Steel working parts, PVC
coated Hand
Wheel, Screwed female parallel threads to IS : 554 |
|
Working Pressure |
(225 psig.) Up to 100oC |
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
| 1 |
Body |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 2 |
Bonnet |
Leaded
Tin Bronze |
LTB 2 of
IS : 318 |
| 3 |
Gland |
Leaded
Tin Bronze/Brass |
LTB 2 of
IS : 318/IS : 6912 |
| 4 |
Gland
Nut |
Leaded Tin Bronze |
LTB
2 of IS : 318 |
| 5 |
Steam Nut |
Leaded
Tin Bronze/Brass |
LTB 2 of
IS : 318/IS : 6912 |
| 6 |
Body Seat Ring |
Stainless Steel |
AISI 410 |
| 7 |
Valve Disc |
Stainless Steel |
AISI 410 |
| 8 |
Stem |
Stainless Steel |
AISI 410 |
| 9 |
Handwheel |
Cast
Iron |
FG 200
of IS : 210 |
| 10 |
Gland Packing |
Graphited ASBESTOS & PTFE |
IS : 4687 |
| 11 |
Nut |
Mild Steel |
IS : 1367 |
| 12 |
Washer |
Mild
Steel |
IS :
1367 | |
|
|
|
Dimensional Data |
|
Sizes |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
|
inches |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
Dimensions |
L |
68 |
86 |
97 |
106 |
117 |
145 |
|
H |
136 |
158 |
165 |
177 |
202 |
215 |
|
W |
69 |
85 |
98 |
98 |
115 |
130 | | |
| |
| |
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 500 psig. |
|
Seat & Back Seat (Hydrostatic) 250 psig. |
|
| | |
| |
| |
