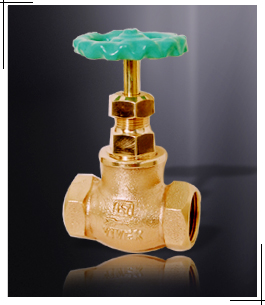

| VIVEK Bronze Globe
Valves IS : 778 ISI Marked Class-1 |
| Specifications |
Screwed in Bonnet, Inside Screw, Rising Stem,
Integral Seats, Screwed Female Parallel
Threads to IS : 554 |
|
Working Pressure Non Shock |
145
psig. (1.0 MPa) Upto
45oC |
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
|
1. |
Body |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
2. |
Bonnet |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
3. |
Disc |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
4. |
Gland Packing |
Asbestos |
IS-4687 |
|
5. |
Stem |
Brass Rod |
FHTB1 OF IS : 6912 |
|
6. |
Gland |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
7. |
Gland Nut |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
8. |
Stem Nut |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
9. |
Hand Wheel |
Cast Iron |
FG 200 of IS : 210 |
|
10. |
Washer |
Mild Steel |
IS : 1367 |
|
11. |
Set Screw |
Mild Steel |
IS : 1367 | |
|
|
|
Dimensional Data |
|
Sizes |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
|
inches |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
Dimensions |
L |
60 |
70 |
80 |
95 |
110 |
125 |
|
H |
85 |
95 |
110 |
115 |
130 |
138 |
|
W |
56 |
58 |
65 |
85 |
88 |
98 | | |
| |
| |
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 217 psig (1.5 Mpa ) |
|
Seat & Back Seat Test (Hydrostatic) 145 psig
(1.0 Mpa) |
| WATER |
STEAM |
GAS |
OIL |
AIR |
|
|
|
|
|
| | | | |
| |
| |
| |
| |

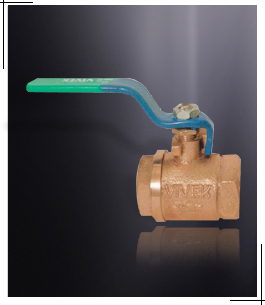

| VIVEK Bronze Ball Valves |
| Specifications |
Quarter turn, Lever operated, Full Bore, Two Piece
Design, Screwed Female parallel threads to IS :
554. With Non Magnetic Stainless Steel Ball & PTFE
seating & packing. |
|
Working Pressure |
(225 psig.) Upto
100oC |
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
|
1. |
Body |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
2. |
End Connector |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
3. |
Gland |
Leaded Tin Bronze/Brass |
LTB 2 of IS : 318/IS
: 6912 |
|
4. |
Ball |
Stainless Steel |
AISI 304/AISI 410 |
|
5. |
Seat |
PTFE |
|
|
6. |
Gland Packing |
PTFE & Asbestos |
IS : 4687 |
|
7. |
Nut |
Mild Steel/Stainless Steel |
IS : 1367/AISI 304 |
|
8. |
Leaver |
Mild Steel |
IS : 226 |
|
9. |
Stem |
Stainless Steel |
AISI 304/AISI 410 | |
|
|
|
Dimensional Data |
|
mm |
8 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
inches |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
|
L |
42 |
42 |
47 |
51 |
52 |
66 |
73 |
86 |
126 |
133 |
|
|
H |
56 |
56 |
60 |
67 |
77 |
89 |
104 |
116 |
144 |
172 |
| | |
|
|
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 500 psig. |
|
Seat Test (Hydrostatic) 250 psig. |
| WATER |
STEAM |
GAS |
OIL |
AIR |
|
|
|
|
|
| | | | |
| |
