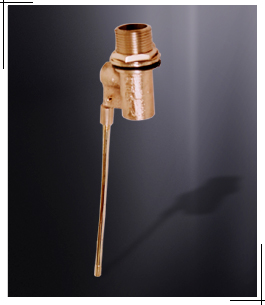

| VIVEK Bronze Float
Valves With Flexible Brass Rod |
| Specifications |
Integral seat, Screwed male Parallel threads to
IS:554, Flexible Brass Rod, Synthetic Rubber
washers, Full Bore hence lesser pressure drop. |
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
|
1. |
Body |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
2. |
Piston |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
3. |
Lever |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
4. |
PIN |
Brass |
|
|
5. |
Washers |
Synthetic Rubber |
IS : 5192 |
|
6. |
Back Nut |
Leaded Tin Bronze |
LTB
2 of IS : 318 |
|
7. |
Rod |
Brass |
| |
|
|
|
Dimensional Data |
|
Sizes |
mm |
15 |
20 |
20TP |
25 |
40 |
50 |
65 |
|
inches |
1/2 |
3/4 |
3/4 |
1 |
11/2 |
2 |
21/2 |
|
Dimensions |
L |
52 |
42 |
51 |
47 |
|
|
|
|
H |
20 |
21 |
25 |
36 |
|
|
| | |
|
|
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 100 psig. |
|
Seat Test (Hydrostatic) 100 psig. |
| WATER |
STEAM |
GAS |
OIL |
AIR |
|
|
|
|
|
| | | | |
| |
| |
| |
| |
| |

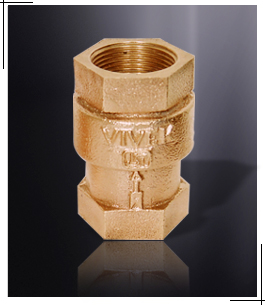

| VIVEK Bronze
Vertical Check Valves IS : 778 ISI Marked Class-1 |
| Specifications |
Single Piece Design, Integral seat, Spring Loaded,
Screwed female parallel threads to IS : 554 .
Avallable in resilient seat also for Vertical.
Lines Only.. |
| |
|
|
|
| Description |
| S.no |
Components |
Material |
Specifications |
|
1. |
Body |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
2. |
Disc |
Leaded Tin Bronze |
LTB 2 of IS : 318 |
|
3. |
Nut & Washer |
Brass |
IS : 6912 |
|
4. |
Spring |
Phosphor bronze/ S.S |
IS : 7608 | |
|
|
|
Dimensional Data |
|
Sizes |
mm |
15 |
20 |
25 |
32 |
40 |
50 |
|
inches |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
|
Dimensions |
H |
15 |
20 |
25 |
32 |
40 |
50 |
|
B |
65 |
70 |
75 |
85 |
95 |
110 | | |
|
Test Pressures (Testing 100%) |
|
Body Test (Hydrostatic) 217.5 psig (1.5 MPa) |
|
Seat Test (Hydrostatic) 145 psig (1mpa) & 37
psig (0.25 Mpa) |
| WATER |
STEAM |
GAS |
OIL |
AIR |
|
|
|
|
|
| | | | |
| |
| |
